    Reference Electrodes

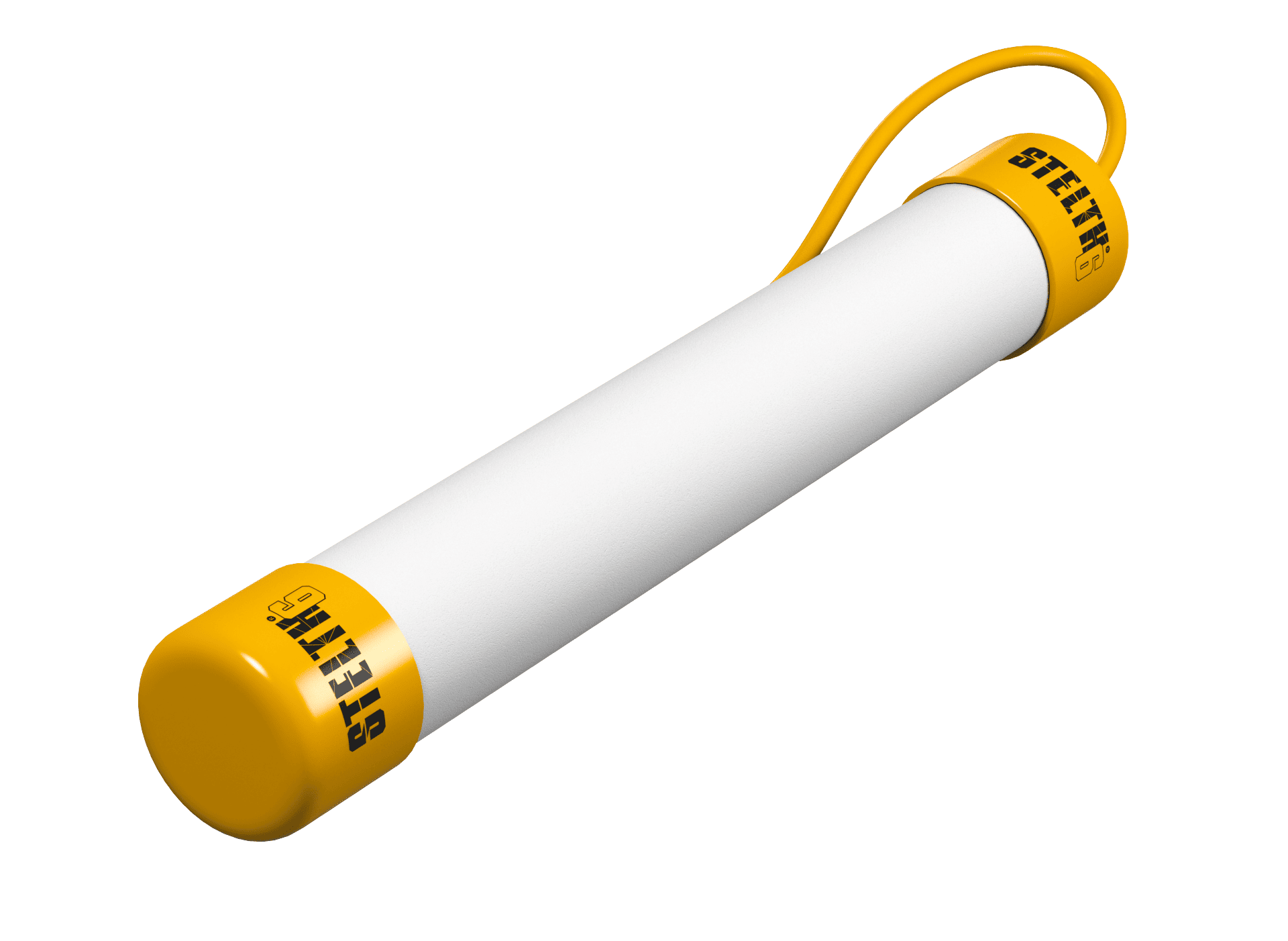

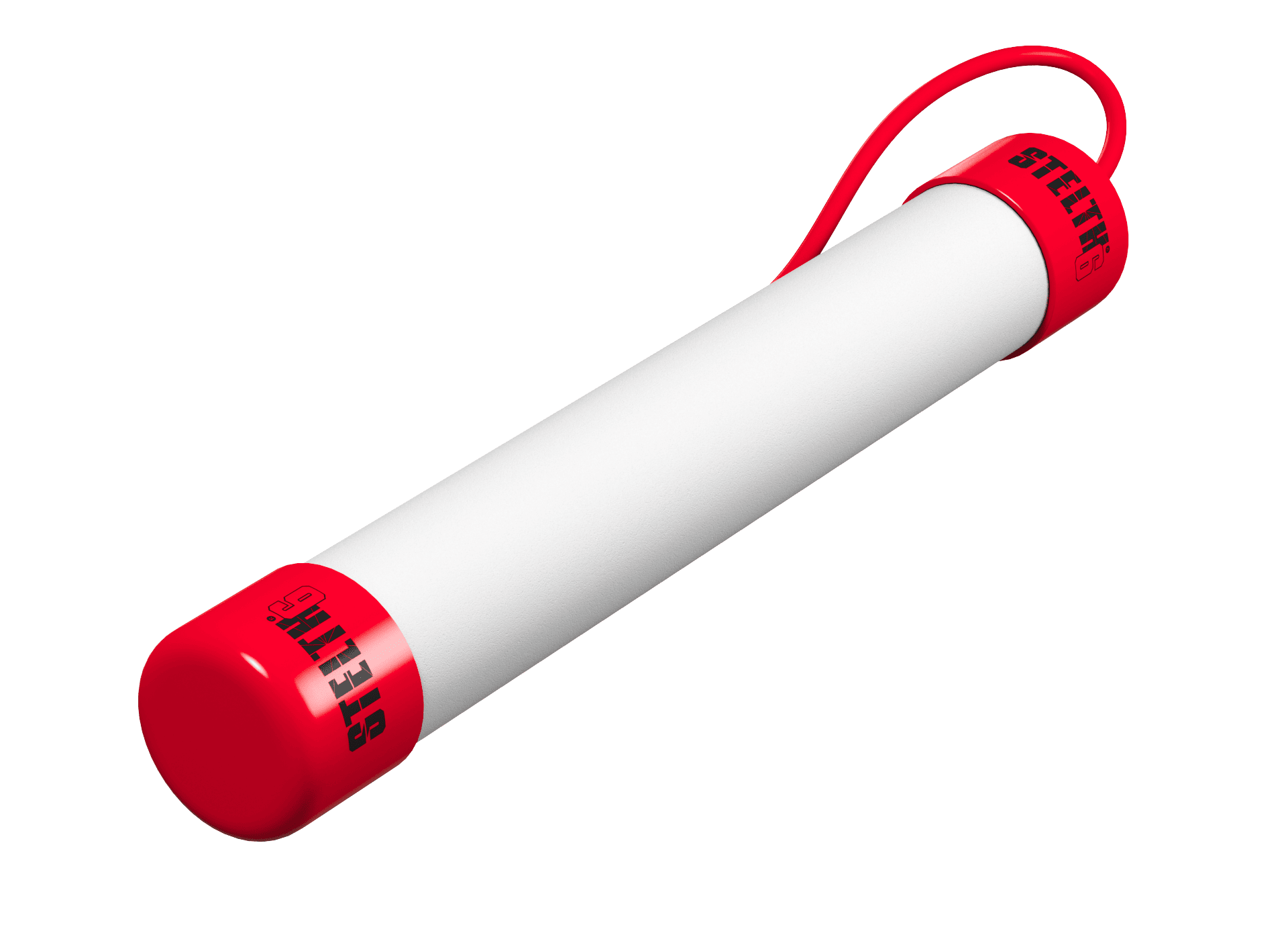

STELTH 6®
Solid-State Reference Electrodes
For Concrete and Dry Soil Conditions
















    If you’re retro-fitting reference electrodes into concrete, we’ve got the perfect STELTH for the job. Our petite STELTH 6 is only 3/4″ wide and just over 6″ long; its smaller size reduces the time and expense needed to retrofit a reference electrode into concrete.
Pick your chemistry
-





      Just a few reasons BORIN STELTH solid-state reference electrodes are unique: - Never need recharging or re-calibrating
- Impregnated with membrane that keeps electrolytes from drying out or getting contaminated
- Trap hydrogen sulfide or excess chloride ions to maintain stability of the electrode
- Let you know when you have dangerous levels of AC to deal with
- Can thrive in ALL saturated environments for their corresponding chemistry
- Remain accurate for their lifetime
- Can survive in all winter conditions
- No need for antifreeze that could alter your readings

 BORIN stands behind every STELTH reference electrode you buy:- We test EVERY SINGLE reference electrode we make. For more details see testing criteria
- You can track/trace any STELTH
- Every STELTH is calibrated for the life of the cell
- Our STELTH reference electrodes will work for years and remain stable indefinitely

-



      - Rebar in Concrete

- Concrete service – Ideal size to retrofit into existing concrete or dry soil conditions

- Size - 0.75″ (19 mm) width x 6.25″ (159 mm) length

- Standard Lead Wire - 20′ (15 m) of #14 (2.5 mm2) RHH-RHW wire (any length of wire available)

- Material - Ceramic with Moisture Retention Membrane (MRM™)

- Service Life - Minimum 30-year service life

- Shelf Life - Infinite shelf life, infinite stability

- Certified Potential Range - ±5 millivolts vs. standard

- pH Range - 4–9 pH

- Working Temperature Range - 32° F to +176° F (0° C to 80° C)

- Material Temperature Range - -60° F to +185° F (-51° C to 85° C)
