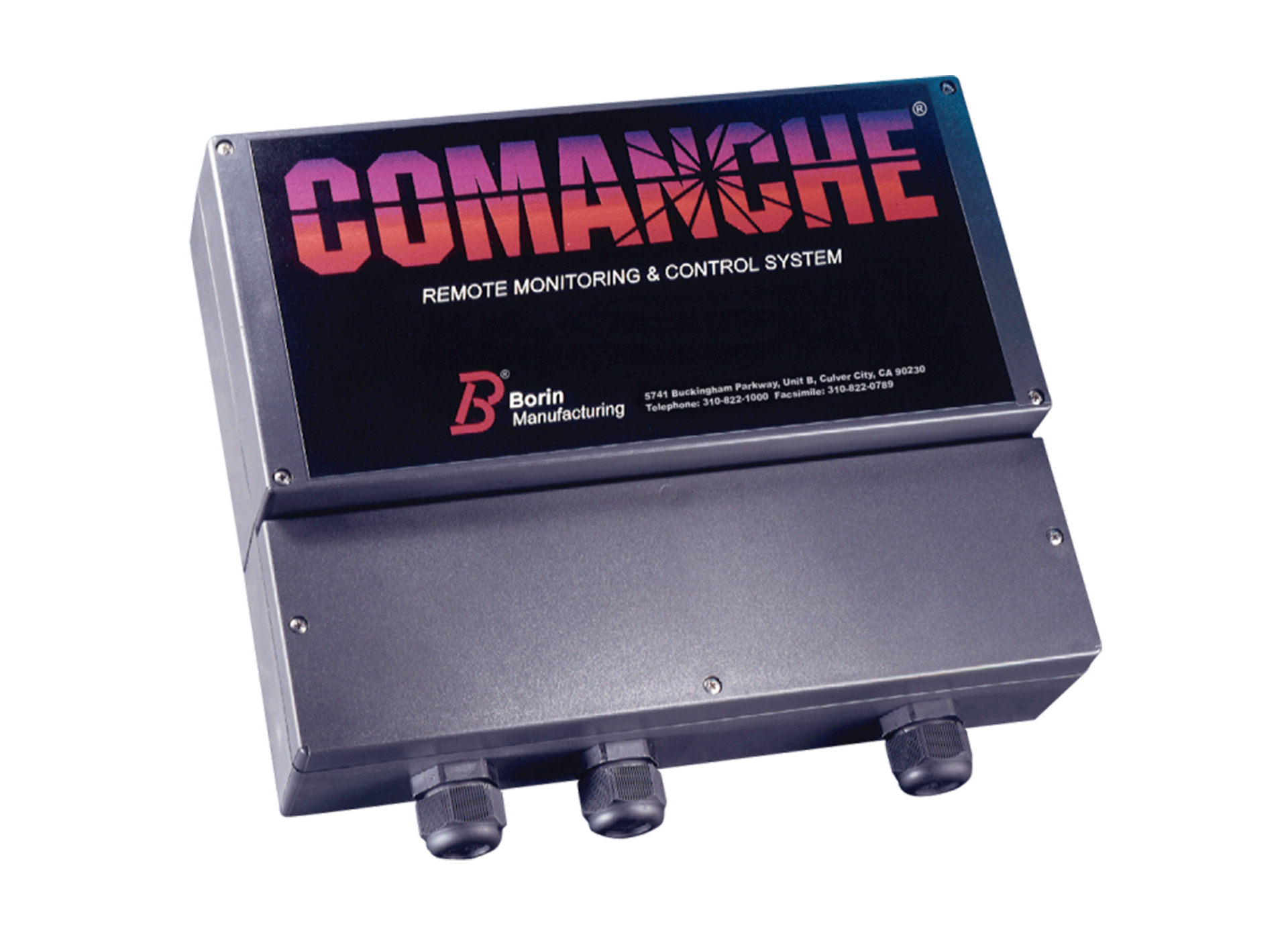

COMANCHE

Remote Monitoring and Control Unit

Since 1992 the COMANCHE Remote Monitoring and Control System has proven exceptional, reliable field operation. It is fully customizable for complex applications that need the flexibility to expand to tens, hundreds, or thousands of channels. Its outlasting performance speaks for its build with military-grade components to withstand overvoltages and extreme weather conditions.

The COMANCHE is compatible with any analog or digital monitoring or control device and can simultaneously perform high-speed data logging of multiple variables.

The COMANCHE gives you all of the readings you need for monitoring:

All CP system readings and functions

AC and DC voltages and currents

Analog or digital alarms

Analog or digital monitoring or control devices

If it can corrode, we can monitor it.

BORIN is the only manufacturer to offer extensive field support for installation and commissioning.

Access current and historical data and alarms at the BORIN Data Center from your smartphone, tablet, laptop, or desktop. Compatible with existing Data Bases like Miller Proactive, Bass Trigon, MS Power BI, etc.

    • GSM

    • Satellite

    • Radio

    • Fiber-optic

    • Microwave

    • SCADA

    • MODBUS

    • Hard-wire

    • Sites affected by distant location, difficult access, or vandalism

    • Multi-channel Rectifiers

    • Tank farms with multiple channels in one site

    • Refineries

    • Large infrastructure projects

    • Subways with drainage bond systems for DC electric railway

    • Expansion to thousands of channels

    • High-frequency data logging

    • Reverse-current switches

    • CP research projects

    • Compliance with ALL regulatory requirements

  • Number of Channels

    • 2 channels to thousands (unlimited) number of channels

  • Size

    • 8 Channel Module: 5″ x 8¾” x 3¼”

      4-32 Channel Module: 8¾” x 11″ x 3¼”

  • Modular Design

    • Built with plug-and-play modular electronic cards configurable to your needs.

  • Synchronization

    • GPS-synchronized interruption or synchronization by internal clock.

  • Primary Enclosure

    • Water-, moisture- and dust-proof to an IP 65 rating (Nema 4x).

  • Communications

    • High-speed TCP/IP network bridge interfaces with any communication system available: GSM, Satellite, radio, fiber optic, SCADA, MODBUS, et cetera.

  • Internal Storage/Capacity

    • 2 GB on-site capacity data logger. Once your data is downloaded from your COMANCHE to the BORIN Data Center, there is unlimited Data Center storage capacity.

  • External Storage

    • Data is encrypted and transmitted to the BORIN Data Center, which has unlimited storage capabilities.

  • Software

    • The robust BORIN Data Center allows you to manage your entire cathodic protection system from one screen.

  • Applications

    • Monitoring reference electrodes, IR-free reference electrodes, Resistance bonding points, Casing to carrier shorts, DC drainage, DC current/density, AC mitigation monitoring, Pipe to soil potentials, Instant OFF, Depolarization, and more.

  • Expansion Capacity

    • Can monitor a simple 2 channel test station all the way to thousands of channels

  • Data Integrity

    • Data transmission is encrypted within our protected Virtual Private Network. Ensures data will be safe and exactly the same at the transmitter and receiver.

  • Warranty

    • 10 year unconditional guarantee

  • Power Supply

    • Choice of 110 VAC, 235 VAC or 12-24 VDC power supply. Battery backup available.

  • Operating Temperature

    • -40° Celsius to +85° Celsius (-40° Fahrenheit to +185° Fahrenheit)

Phone
(310)-822-1000

Email
borin@borin.com

Address
5741 Buckingham Pkwy. Unit B
Culver City, CA 90230



  • SKU

    • C-COMANCHE-01

  • Call or Email Us for Specific Information

    • We will custom design your COMANCHE remote monitoring unit to your needs.
