Remote Data-Logging / Monitoring

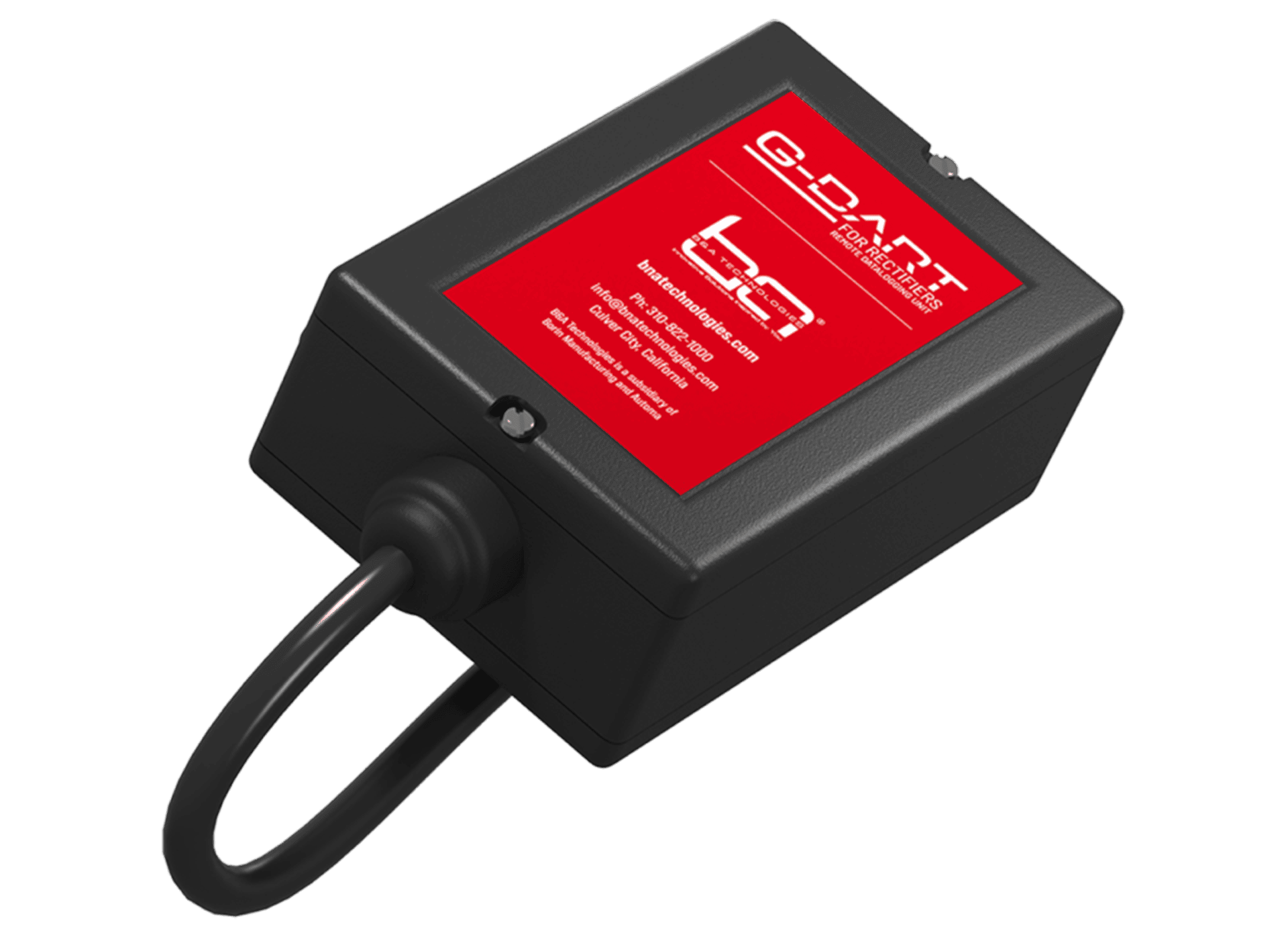

G-DART for Rectifiers

Remote Monitoring and Control Unit
B&A Manufacturing Product

The power of a data-logger in your RMU and the data analysis capability to provide you with:

  • Actionable daily reports that analyze data for you

  • Monitor all rectifier parameters

  • GPS synchronized interruption

  • Off-potential and coupon current density

  • Control output of automatic rectifiers

  • Efficiency of any variable measured in percentage of time working within threshold

  • Predictive anode life span

  • Track reliability of power supply and send alarms for power loss with integrated battery back-up

  • Advanced Data Collection: The battery-powered G-Dart samples data at a rate of one reading per second across five galvanically isolated channels, delivering high-resolution insights into your CP system’s performance.

    Comprehensive Daily Reports: Automated analysis generates detailed reports, including minimum, maximum, average, mode, and standard deviation values, providing a clear picture of system health.

    Modular, Future-Proof Design: The G-Dart’s modular architecture allows for easy upgrades and enhancements without replacing the entire unit, ensuring your investment is protected for years to come.

    • Pipelines

    • Tank Farms

    • Airports

    • Offshore Platforms

  • With the G-Dart RDU, you gain peace of mind knowing that your infrastructure is continuously monitored by the most advanced technology available. Our solution empowers you to detect issues early, optimize maintenance, and maintain compliance with industry standards—all from the convenience of your smartphone or computer.

  • Communication

    • Local: BLE with Fido Universal management software.
      Remote: 2G/3G/4G
      Iridium Satellite
      Ethernet
      SCADA, etc.

  • Power Supply

    • DC Input: 9-30 VDC
      AC Input: 90-240 VAC
      Integrated: rechargeable battery backup, provides up to 4 weeks battery operation

  • Channel Specifications

    • Up to 10 readings from 5 galvanically isolated dual terminals
      Simultaneous AC/DC measurement on the same physical channel
      Selectable scale ranges ± 500 mV, ± 20 V, ± 50 V, ±
      100 V – DC
      Measurement accuracy: 0.02% FS
      Instant OFF Potential in coupons configurable in milliseconds
      Over voltage protection 10/350 uS > 5KV.

  • Mechanical Specifications

    • Dimensions: 5.1 x 3.3 x 3.0 in ; 12.9 x 8.5 x 7.7 cm
      IP68/IK07
      Weight: 1.8 lbs ; 0.8 Kg
      Operating temperature: -4 °F to + 185 °F ; -20 °C to + 85 °C
      Installation: Inside rectifier cabinet or secondary enclosure

  • Compliance With Standards

    • ISO 15589-1, ISO 22426, ISO 18086, ISO 21857, ISO 22426
      EN 12954, EN 13509
      UNI 11094, UNI 10950, Linee Guida APCE
      NACE SP0169, TM0497, SP0104
      IEC 62443 (CYBERSECURITY)
