Remote Data-Logging / Monitoring

G-DART for Test Stations

Remote Monitoring and Control Unit
B&A Technologies Product

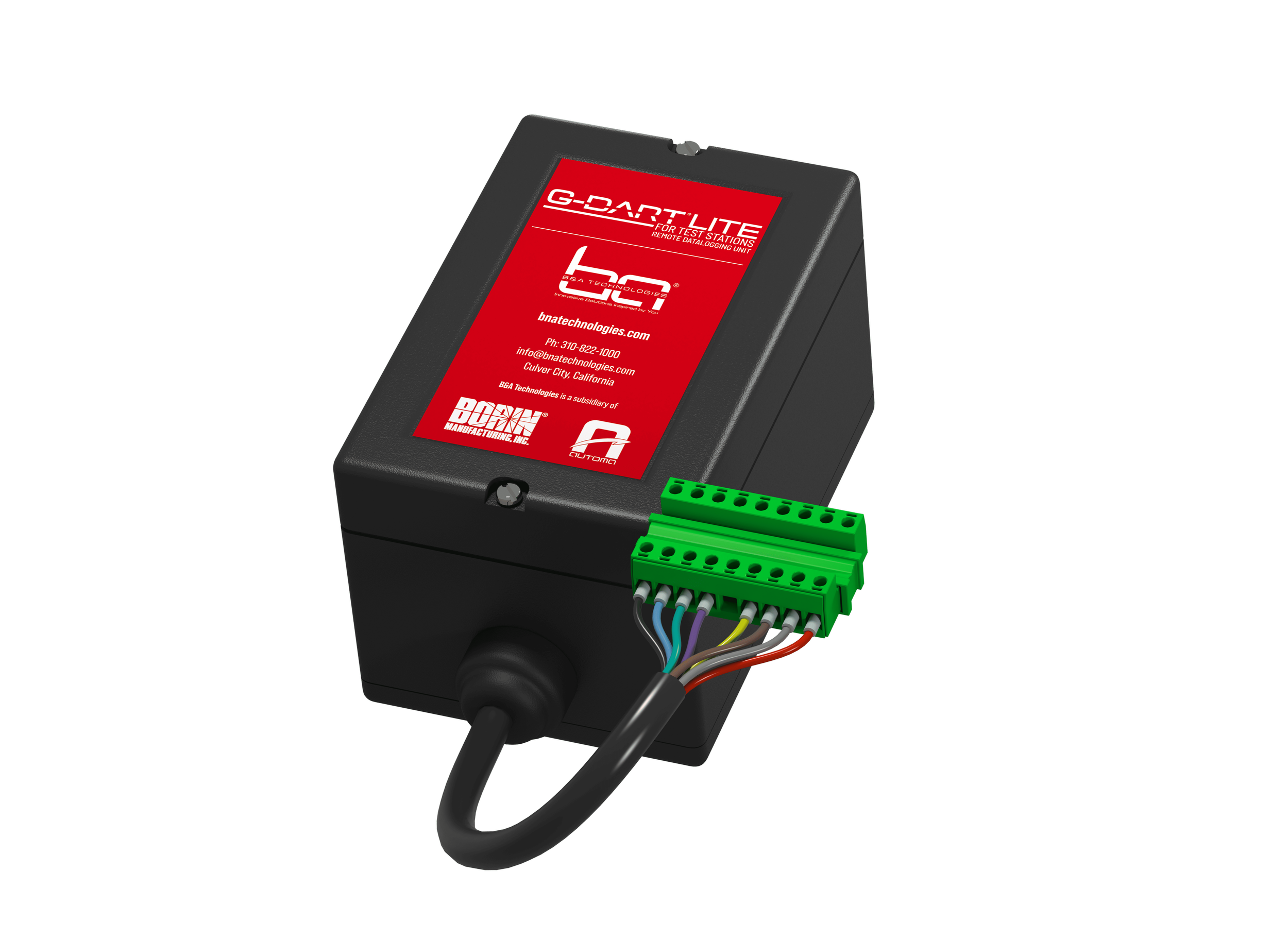

Also comes in a Lite version!

The power of a data-logger in your RMU and the data analysis capability to provide you with:

  • Actionable daily reports that analyze data for you

  • Off-potential and current density coupon readings

  • ER Probe readings

  • Battery-powered

  • Designed for standard 3” test station pole

  • Solar power ready

  • Patented Reference Cell diagnosis

  • Cellular and satellite communication

  • Advanced Data Collection: The battery-powered G-Dart samples data at a rate of one reading per second across five galvanically isolated channels, delivering high-resolution insights into your CP system’s performance.

    Comprehensive Daily Reports: Automated analysis generates detailed reports, including minimum, maximum, average, mode, and standard deviation values, providing a clear picture of system health.

    Modular, Future-Proof Design: The G-Dart’s modular architecture allows for easy upgrades and enhancements without replacing the entire unit, ensuring your investment is protected for years to come.

    • Pipelines

    • Tank Farms

    • Airports

    • Offshore Platforms

  • With the G-Dart RDU, you gain peace of mind knowing that your infrastructure is continuously monitored by the most advanced technology available. Our solution empowers you to detect issues early, optimize maintenance, and maintain compliance with industry standards—all from the convenience of your smartphone or computer.

  1. Data Sheet
    G-DART for Test Stations

  1. G-DART for Test Stations Drawing

  • Communication

    • Local: BLE with Fido Universal management software.
      Remote: 2G/3G/4G or Iridium Satellite

  • Power Supply

    • Integrated long-life lithium battery (+5 years)
      External solar panel (+10 years) - with external accessory SOLAR 3” Test Station

  • Channel Specifications

    • 5 galvanically isolated channels
      Simultaneous AC/DC measurement on the same physical channel
      Selectable scale ranges ± 500 mV, ± 20 V, ± 50 V, ± 100 V – DC
      Measurement accuracy: 0.02% FS
      Instant OFF Potential in coupons configurable in milliseconds
      Over voltage protection 10/350 uS > 5KV.

  • Mechanical Specifications

    • Dimensions: 24.5 in L x 2.9 in diam, 62.2 cm L x 7.3 cm diam
      Weight: 3.4 lb, 1.5 Kg
      Operating temperature: -4 °F ÷ + 185 °C
      Installation: Standard 3” Test Station pole
      Junction box installation available - dimensions: 5.1 x 3.3 x
      3.0 in, 12.9 x 8.5 x 7.7 cm

  • Compliance With Standards

    • ISO 15589-1, ISO 22426, ISO 18086, ISO 21857, ISO 22426
      EN 12954, EN 13509
      UNI 11094, UNI 10950, Linee Guida APCE
      NACE SP0169, TM0497, SP0104
      IEC 62443 (CYBERSECURITY)
