Remote Data-Logging / Monitoring

Street G-DART

Remote Data-Logging Unit
B&A Technologies Product

The Street Dart Remote Data-Logging Unit (RDU) uses cutting-edge technology to provide the most advanced solution for remote monitoring of cathodic protection (CP) test stations. The G-Dart enables automated collection and transmission of critical CP data that allows our customers to verify that their infrastructure is protected.

  • Advanced Data Collection: The battery-powered G-Dart samples data at a rate of one reading per second across five galvanically isolated channels, delivering high-resolution insights into your CP system’s performance.

    Comprehensive Daily Reports: Automated analysis generates detailed reports, including minimum, maximum, average, mode, and standard deviation values, providing a clear picture of system health.

    Modular, Future-Proof Design: The G-Dart’s modular architecture allows for easy upgrades and enhancements without replacing the entire unit, ensuring your investment is protected for years to come.

    • Pipelines

    • Tank Farms

    • Airports

    • Offshore Platforms

  • With the G-Dart RDU, you gain peace of mind knowing that your infrastructure is continuously monitored by the most advanced technology available. Our solution empowers you to detect issues early, optimize maintenance, and maintain compliance with industry standards—all from the convenience of your smartphone or computer.

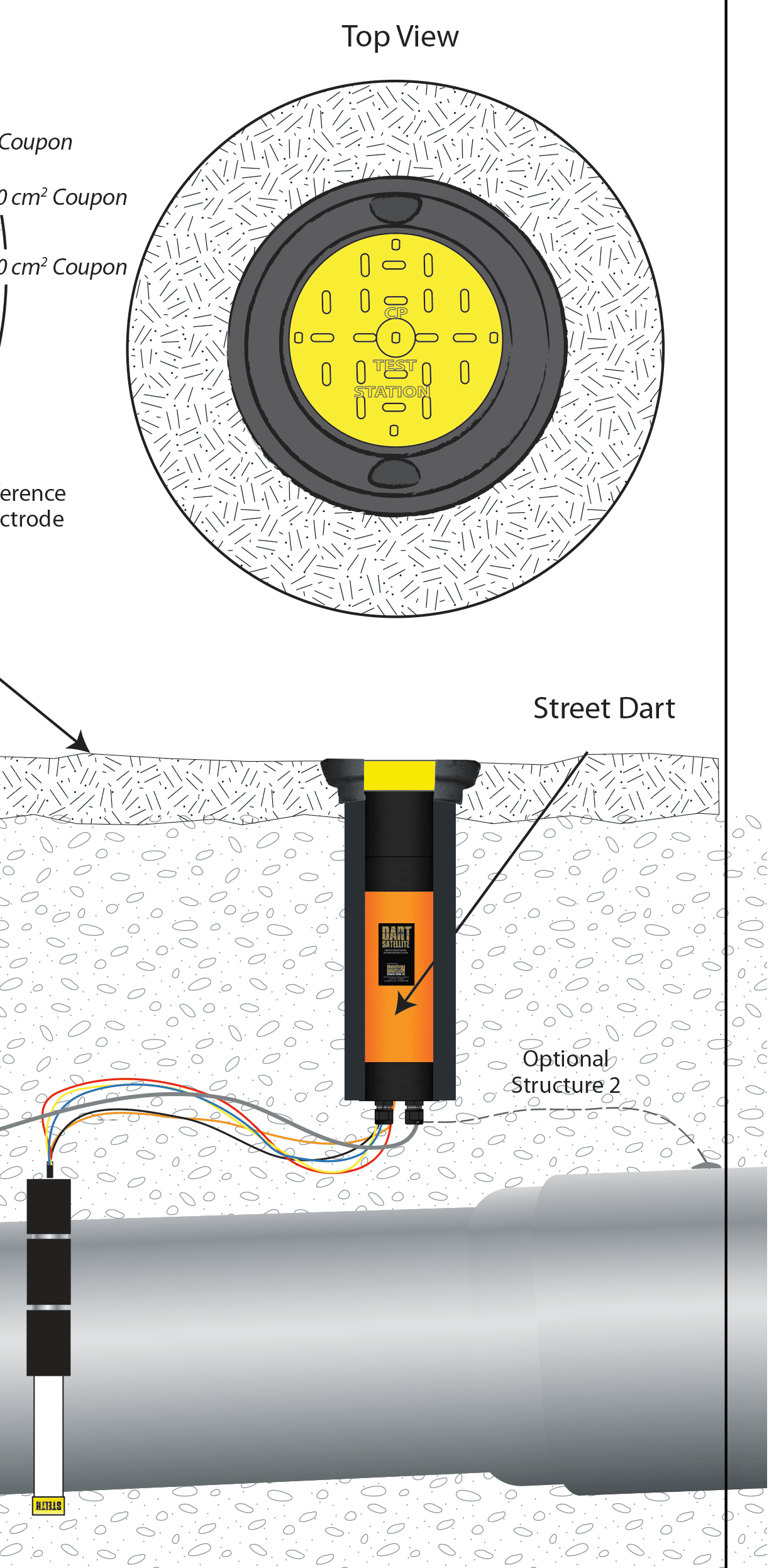

  1. Street DART Drawing

  1. Data Sheet
    Street DART for Test Stations

  • Communication

    • Local: BLE with Fido Universal management software.
      Remote: 2G/3G/4G or Iridium Satellite

  • Power Supply

    • Integrated long-life lithium battery (+5 years)

  • Channel Specifications

    • 5 galvanically isolated channels
      Simultaneous AC/DC measurement on the same physical channel
      Selectable scale ranges ± 500 mV, ± 20 V, ± 50 V, ± 100 V – DC
      Measurement accuracy: 0.02% FS
      Instant OFF Potential in coupons configurable in milliseconds
      Over voltage protection 10/350 uS > 5KV.

  • Mechanical Specifications

    • Dimensions: 16.0 in L x 4.0 in diam, 40.1 cm L x 10.2 cm diam
      IP68
      Weight: 4 lbs, 1.8 Kg
      Operating temperature: -4 °F ÷ + 185 °C
      Installation: Fits into existing flush mounted test stations: ProMark®, Bingham and Taylor®, Buffalo Box®, etc.

  • Compliance With Standards

    • ISO 15589-1, ISO 22426, ISO 18086, ISO 21857
      ISO 22426
      EN 12954, EN 13509
      UNI 11094, UNI 10950, Linee Guida APCE
      NACE SP0169, TM0497, SP0104
      IEC 62443 (CYBERSECURITY)
